Lockcar security is a cost-effective mobile security and video surveillance device specially designed for remote security and surroundings live streaming of the vehicle.

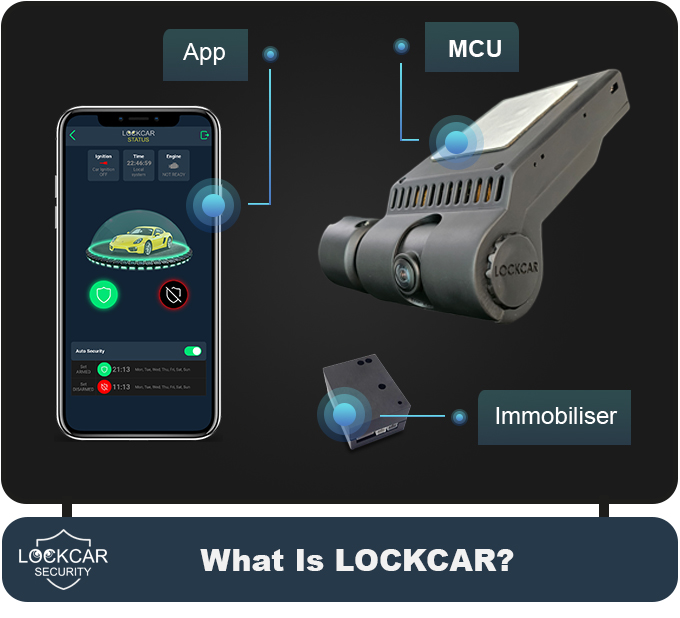

LOCKCAR security has 3 components:

Lockcar App (system’s interface),
Lockcar MCU (mini computer unit), which integrates multiple modules, such as 3G/4G, Wi-Fi and G-sensor.
Lockcar Immobilizer (anti-theft system).

General Information

LOCKCAR Features

⍟ Security MCU-CAR Status

⍟ Live* Cameras

⍟ Status Car Protection

⍟ GPS Live Location

LOCKCAR – a security and vehicle immobilization system against theft when KEYLESS key cloning is attempted.

The LOCKCAR system comes as a bonus with a Surround View Camera for those who want to see what is happening with their vehicle in real time.

This complex anti-theft system was designed in the UK by AZFO with the aim of serving the needs of the user and the development of applications and futures can be customized. The LOCKCAR anti-theft system can be used on Car, Vans, Motorbike, Motorhome.

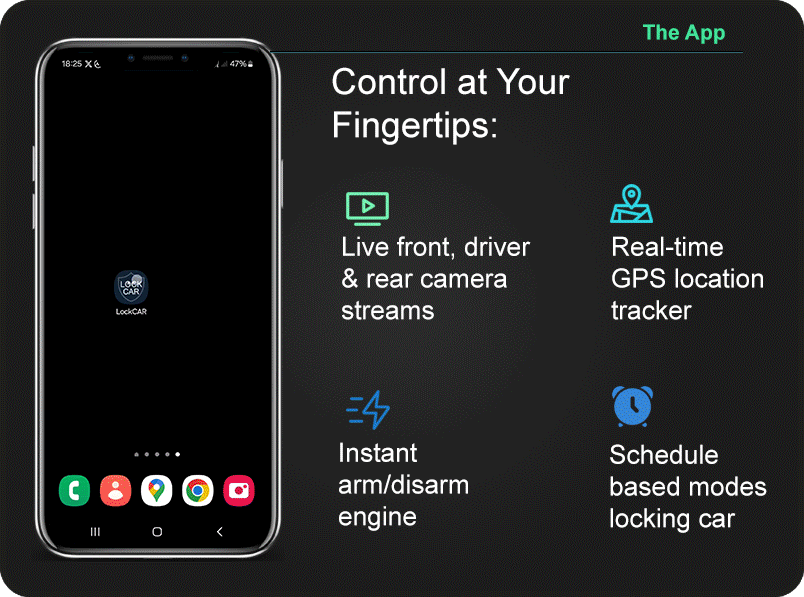

LOCKCAR APP

The app was developed to provide quick information about the car’s status from the first opening of the application.

APP Features

⍟ GPS

⍟ 4g LTE mobile signal

⍟ Bluetooth

⍟ Hotspot

⍟ Wi-FI

⍟ Motion sensor

⍟ Live* Front View Camera

⍟ Vehice ARMED status

⍟ Live* Rear View Camera

⍟ GPS tracker car location

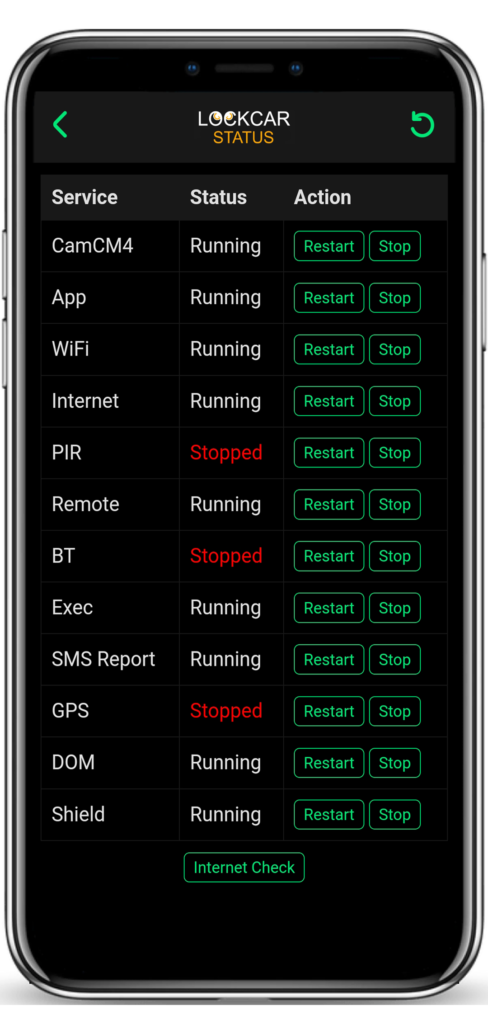

Through the App, the User communicates with the MCU to see the vehicle status and to set and configure the system according to their needs.

Navigate into App

★

Live

Stream

★

Record

View

★

Security

Area

★

Schedule

Function

★

Live

Location

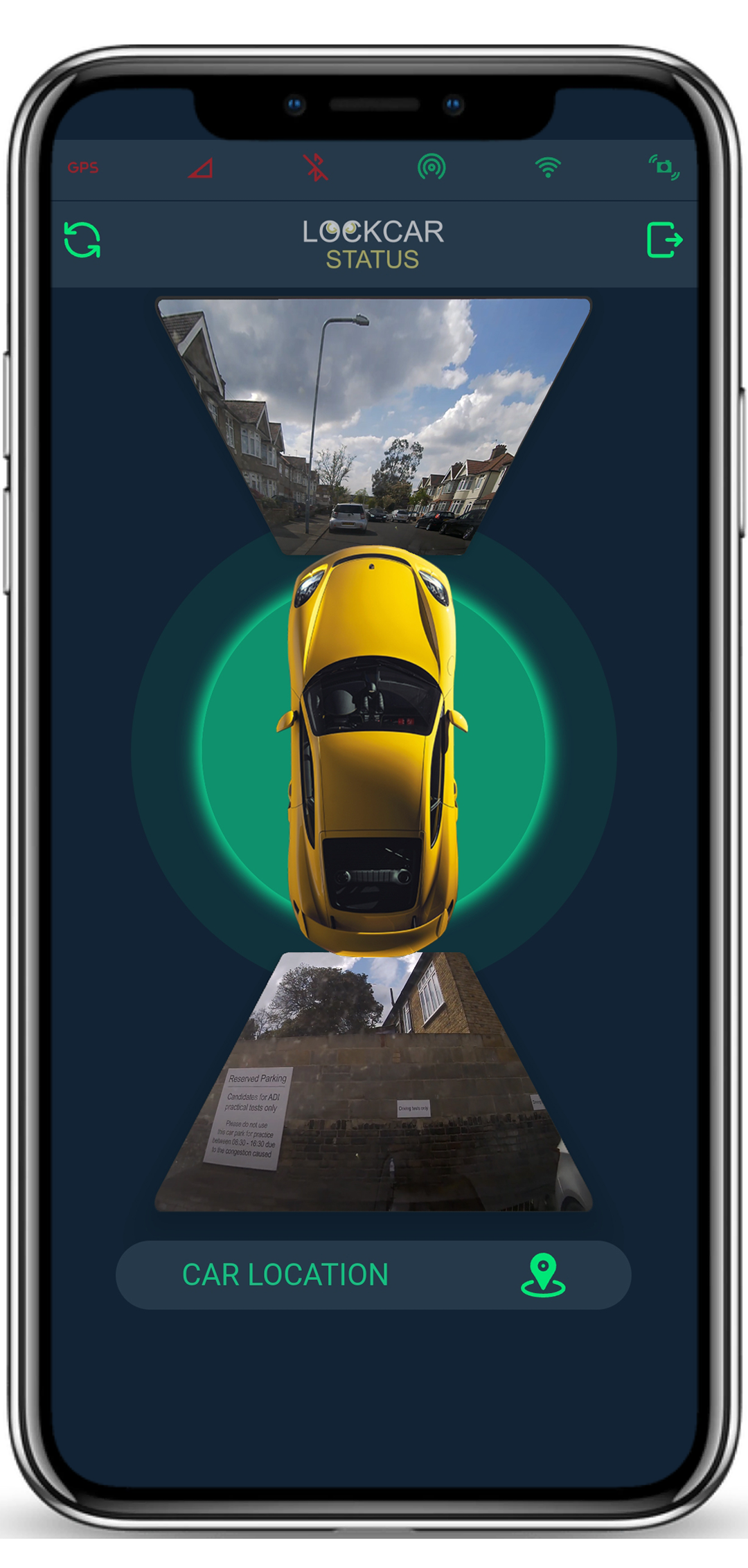

Live Stream

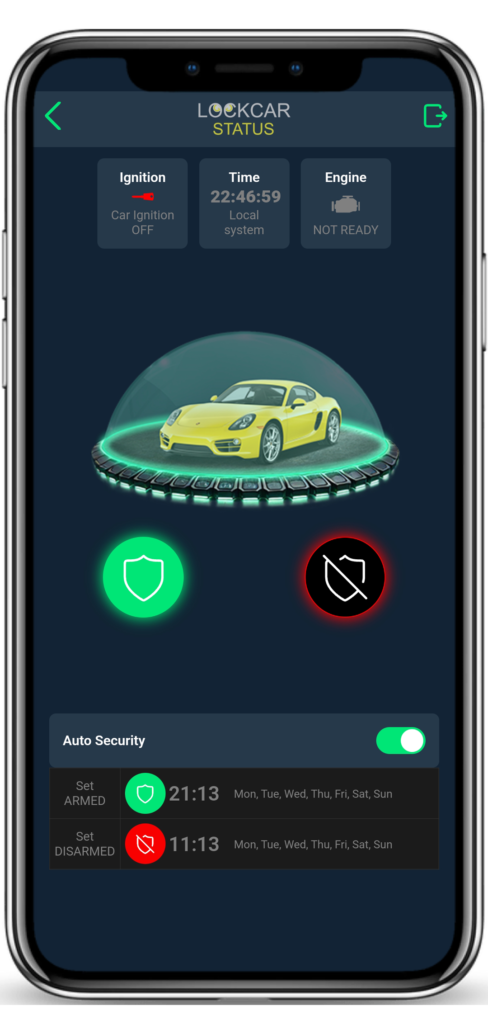

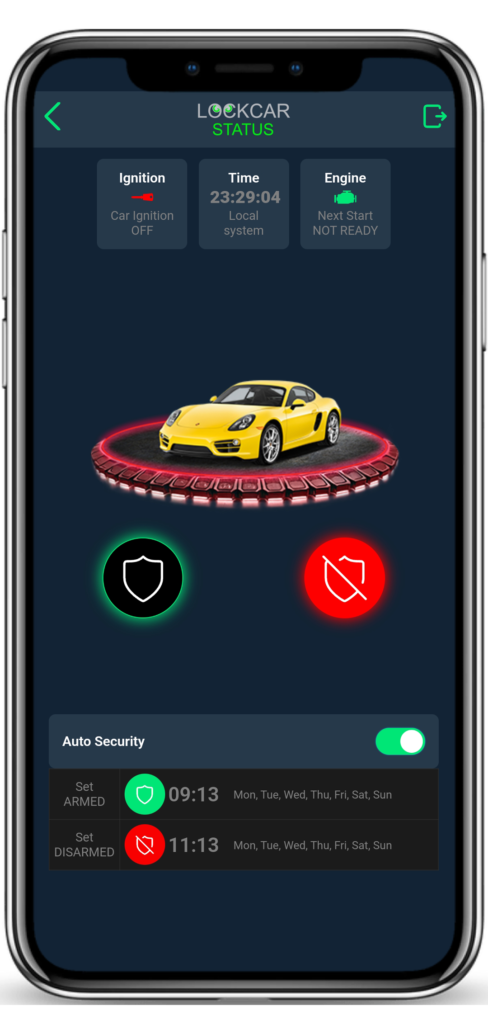

Armed Status

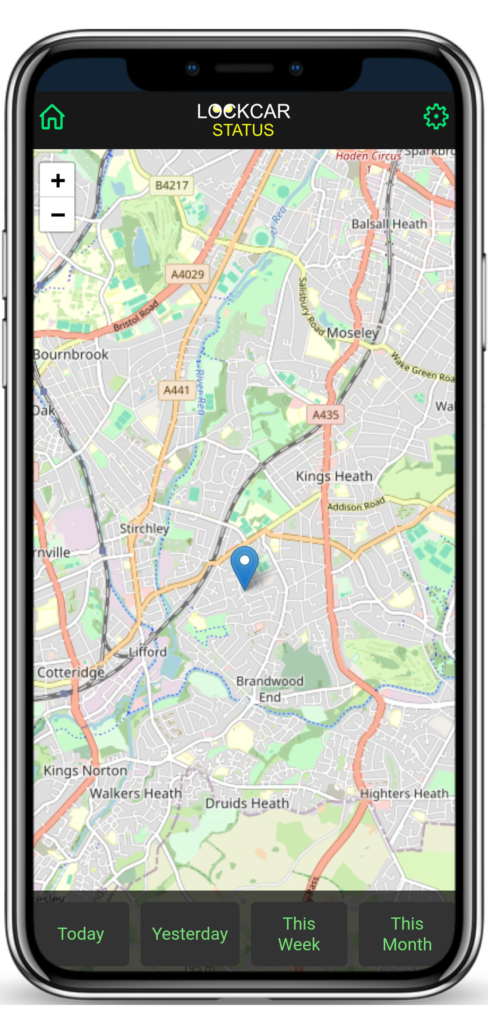

Live Location

APP Overview

Communicate with the MCU via:

Wi-FI (local)
4G LTE GSM (remote)

Accessing:

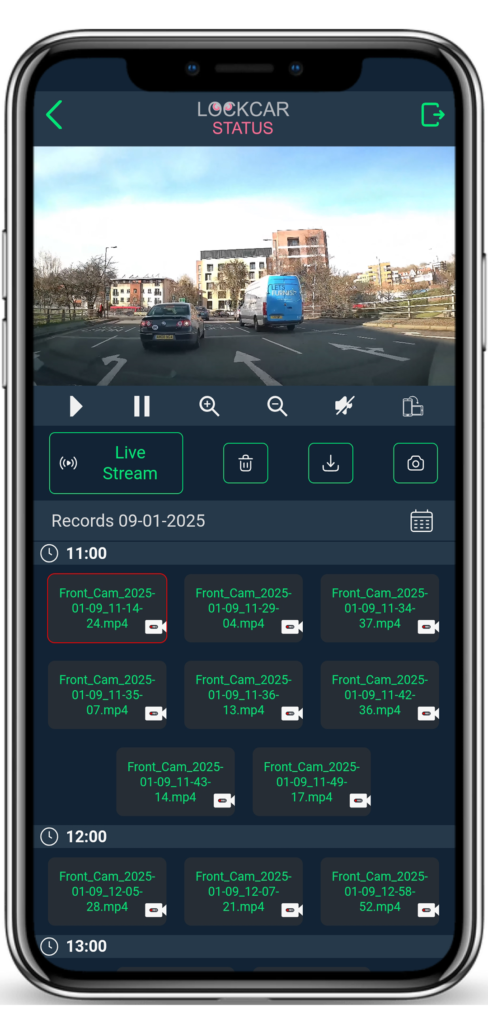

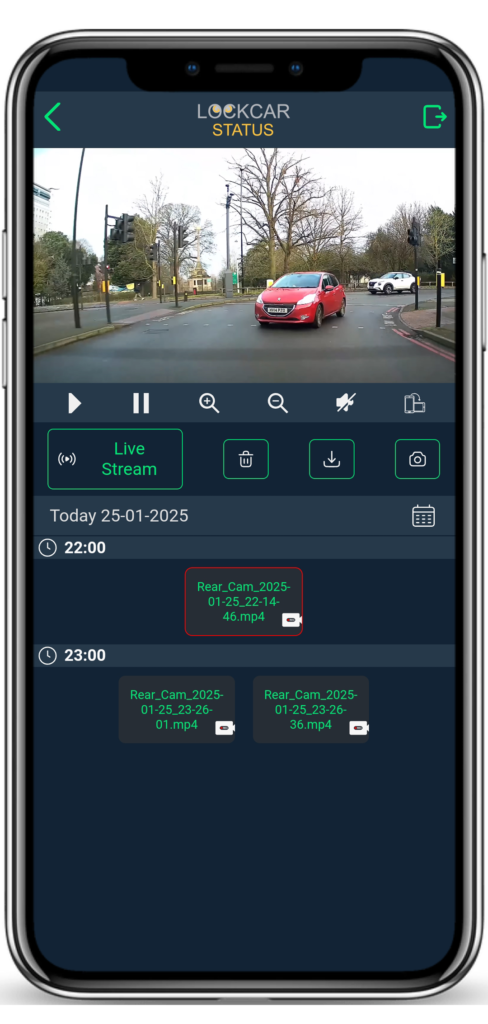

live streaming,
live previews, videos and images from the memory card,
downloading video files,
local settings of the MCU.

APP Specification

Through the application, settings can be made to::

GPS settings, (geolocation, tracking, history)
4G LTE GSM settings for (remote acces, sms alert)
Bluetooth settings for (pairing trust devices, pair with the audio car sistem)
Hotspot settings to ( share internet date from sim card)
Wi-Fi settings for (comunicate local, change password, rename device)
Camera settings for live view, recording on motion on parking time
wake-up, sleep, battery safe-mode

LOCKCAR MCU

This MCU here will be called Micro Computer Unit, it is designed to operate independently of the rest of the car’s systems so that it cannot be impacted when the car undergoes any change on the CAN line or when the car is jammed or attacked by modern thieves with antennas for scanning KEYLESS starting systems.

MCU Features

⍟ Immobiliser Settings

⍟ GPS

⍟ 4g LTE mobile signal

⍟ Bluetooth

⍟ Hotspot

⍟ Wi-FI

⍟ Motion sensor

⍟ Live* Front & Rear View Camera

⍟ Vehice ARMED status

⍟ GPS tracker car location

The MCU unit is very versatile and can be adapted to the needs of each customer who wants a specific specification. Additional sensors can be mounted and futures can be added to the user’s requirements. It is a very powerful protection system for which dedicated software can be made.

MCU Features

★

4G

LTE

★

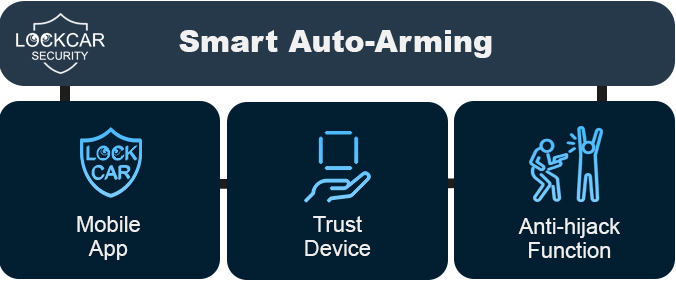

Auto

Arming

★

Engine

Deactivate

★

Proximity

Settings

★

Live

Cameras

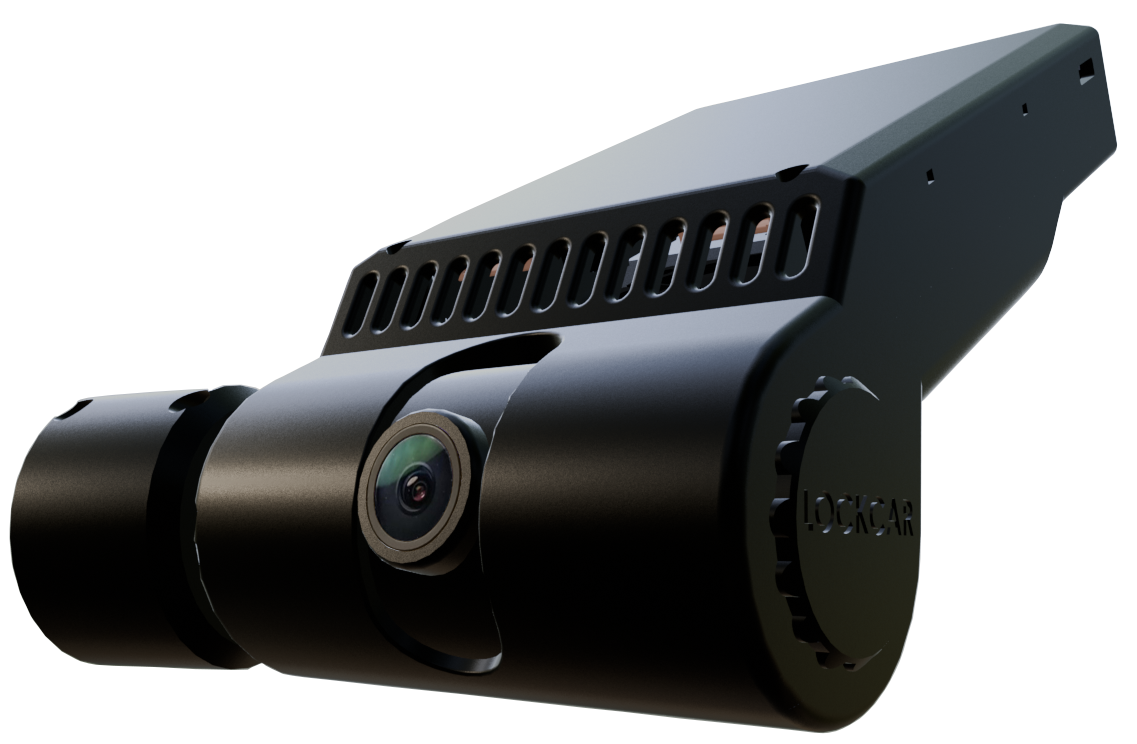

MCU Overview

Through the platform/app, users can remotely connect to the in-car LOCKCAR to view real-time Security status, live view, video, take snapshots, and stay informed about the vehicle’s status.

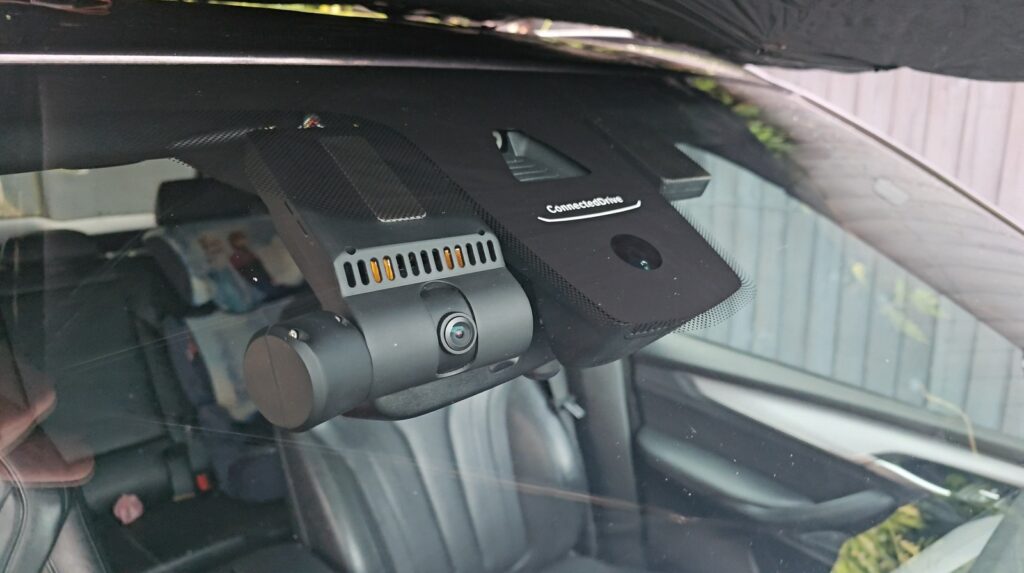

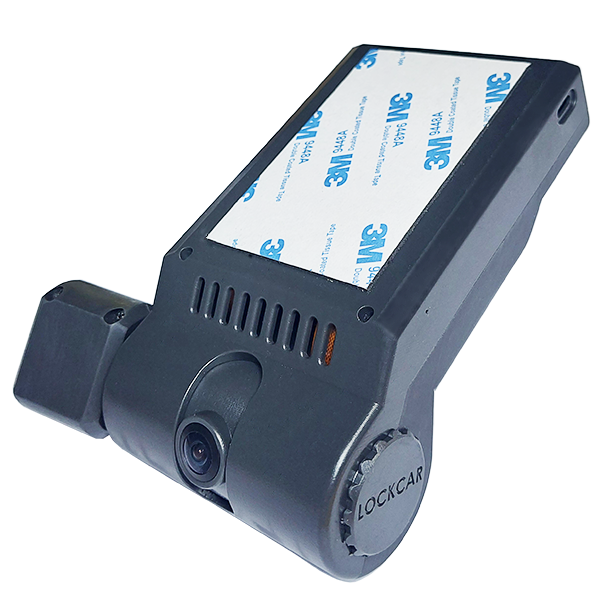

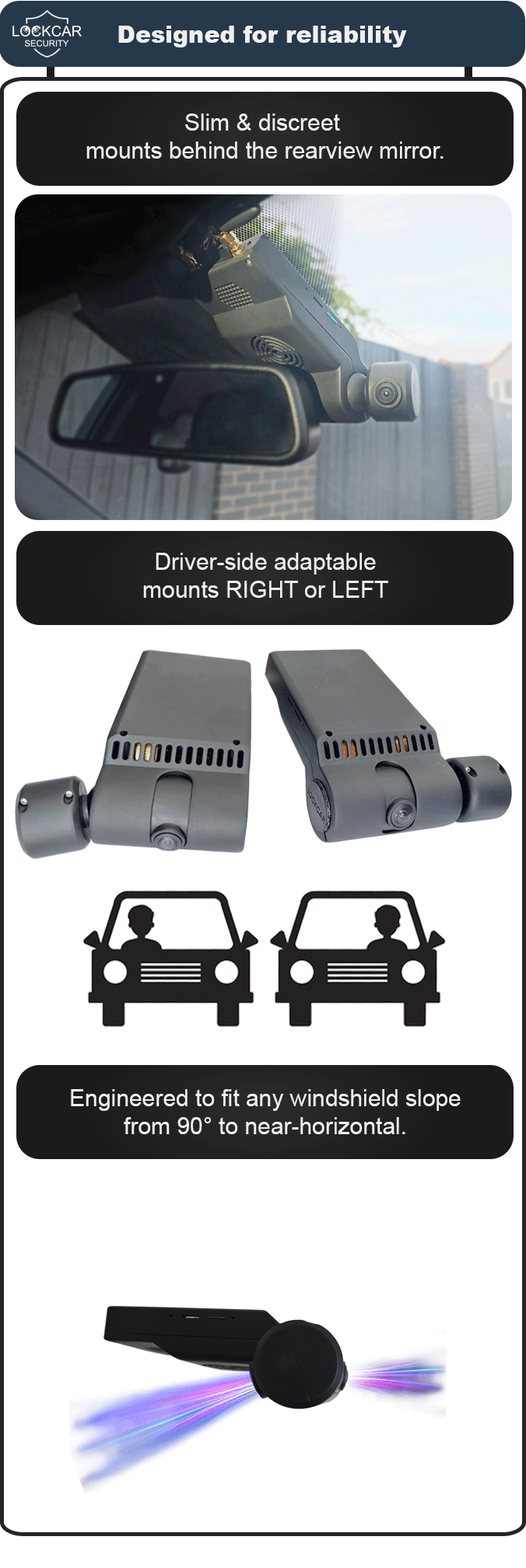

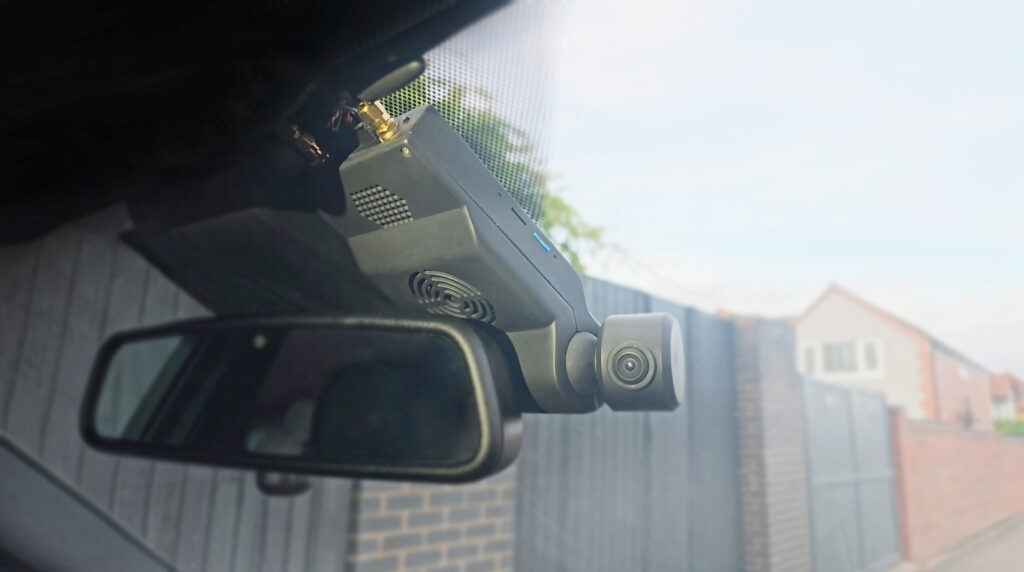

Installed directly to the windscreen (next to the rear-view mirror)
Compact size and lightweight
Supports 3G/4G, GPS, Bluetooth & Wifi

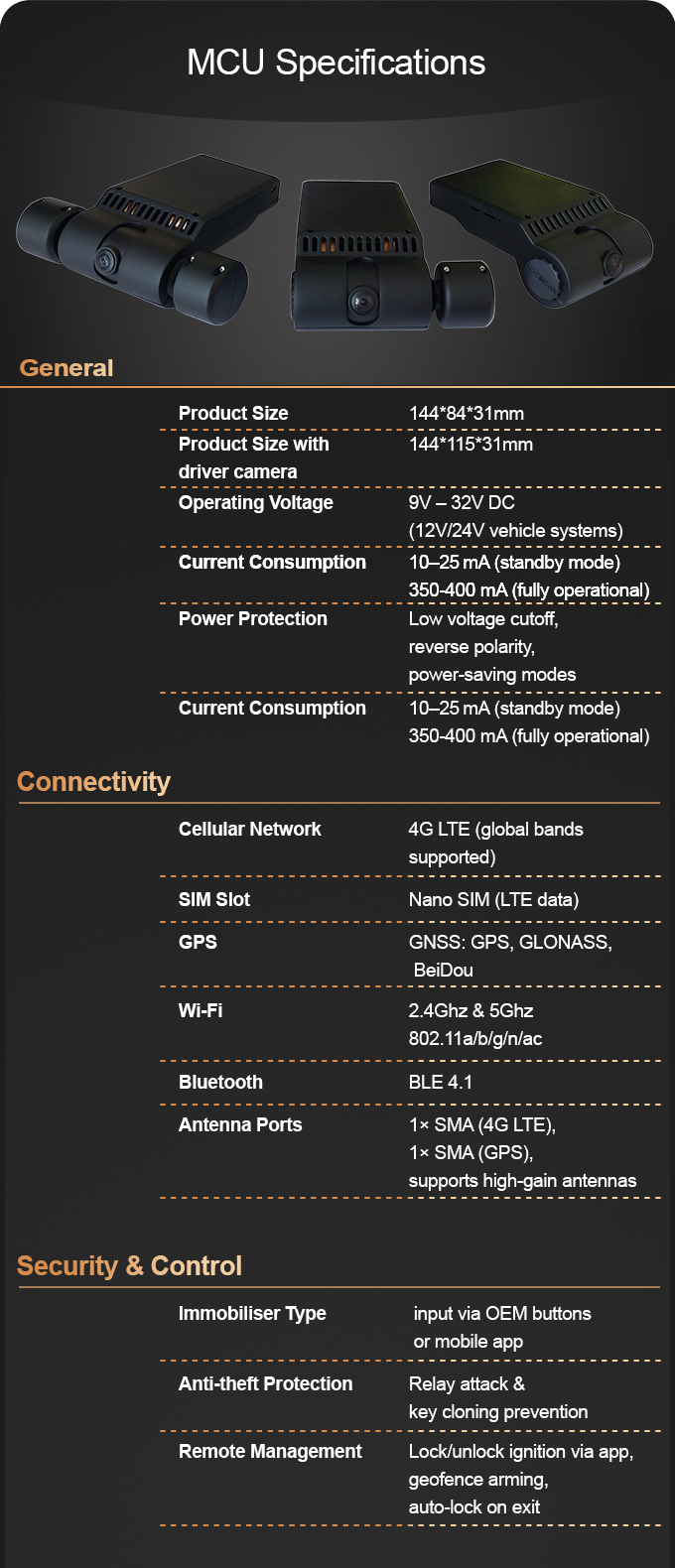

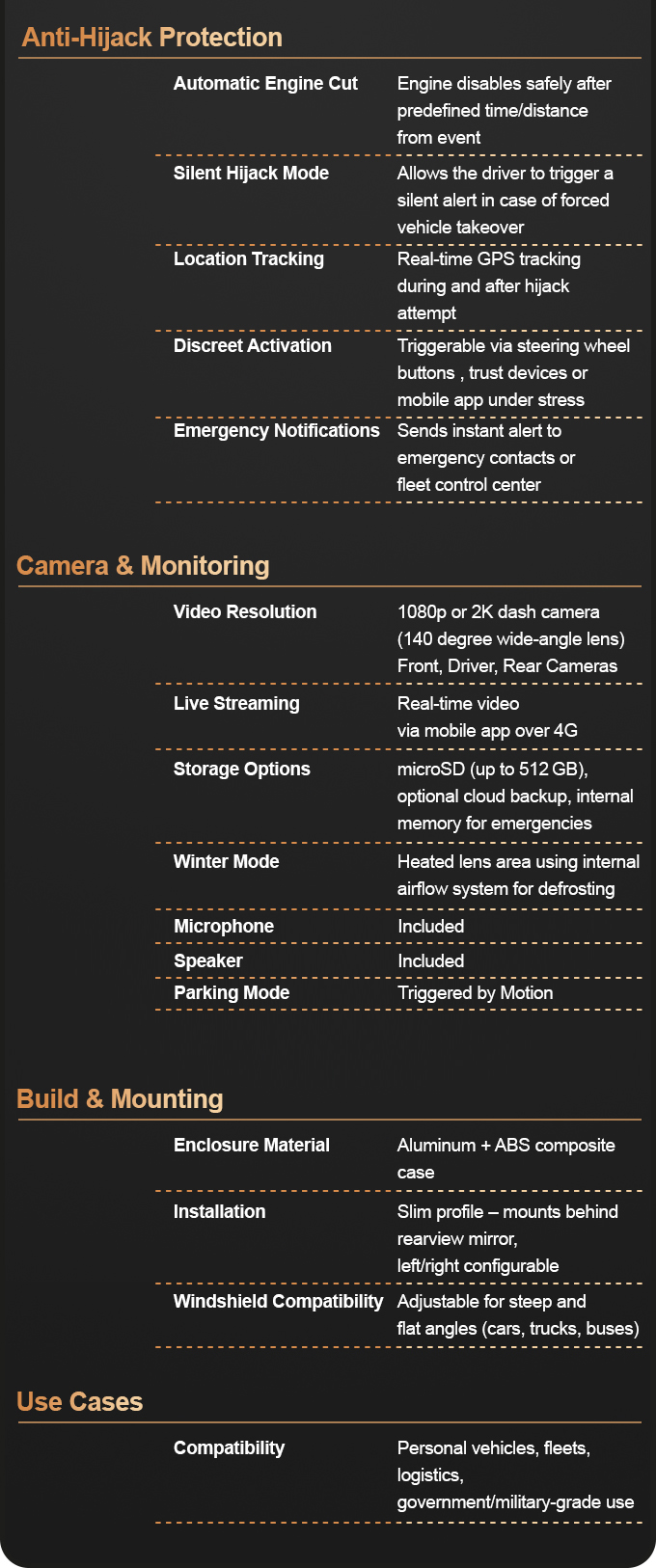

MCU Specification

Network:

WiFi
Bluetooth
Telstra 3G/4G
LTE
GPS/BD

Positioning :

Dual Mode

G-Sensor:

Six Axis

SensorStorage:

SD Card 64GB/128GB/256GB

Video and Audio recording:

Front Camera: 1080P @ 30fps

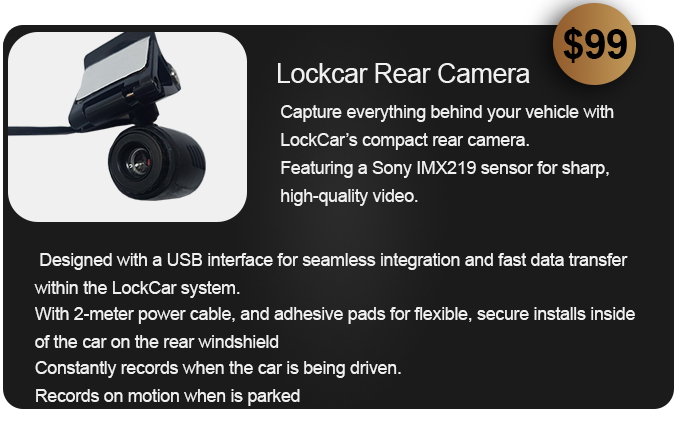

Rear Cameras: 720P @ 30fps

CBR/VBR:

Supported

Audio input:

Supported

Built-in speaker:

Supported

IO alarm:

2 with self-test

Power related:

Power supply 12-24V

Typical power:

consumption 4,2W

General specification:

Operating temperature -30°C~+70°C

Dimensions:

LxHxW 90×39.5×100

Cameras Features

Camera Full HD 1080p/720p
High-quality super-wide viewing angle
SD-card recording storage (up to 256GB)
89.9(L) x 33.8(H) x 108.1(W)mm

Add-on futures

The Lockcar is capable of intelligently recognizing various scenarios that can be added and added to the MCU:

approaching people,
approaching vehicles,

It effectively predicts safety risks such as

tailgating,
attempted theft,
accident at night.

The system camera also intelligently identifies and alerts the owner via the app.

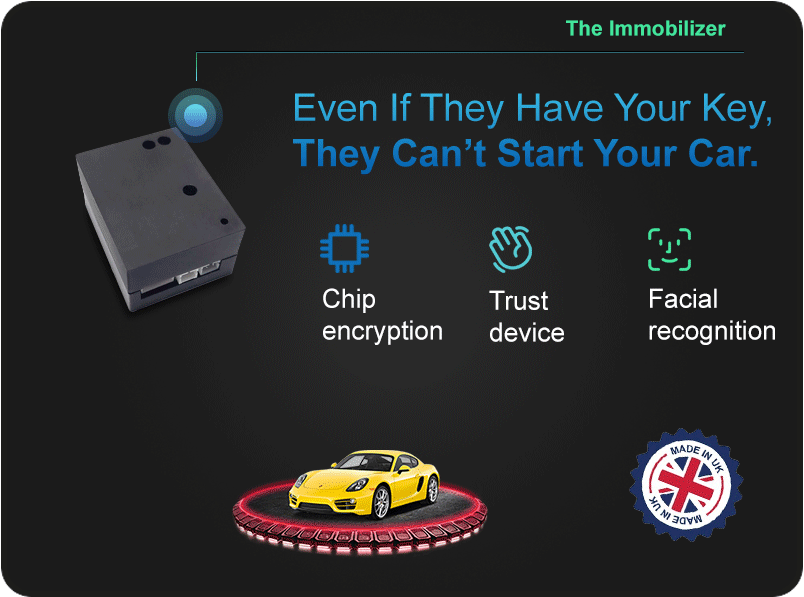

LOCKCAR IMMOBILISER

This vehicle immobilizer system is both stand alone and controlled only by the MCU, being separate from the car system, this immobilizer will be installed in series with the car’s starting system and will act independently following the settings in the MCU

the image does not provide too much detail for security reasons

Immobiliser Features

⍟ Stand-alone

⍟ Undetectable protection against theft

⍟ Always in security ON mode

⍟ Auto security

⍟ Manual security

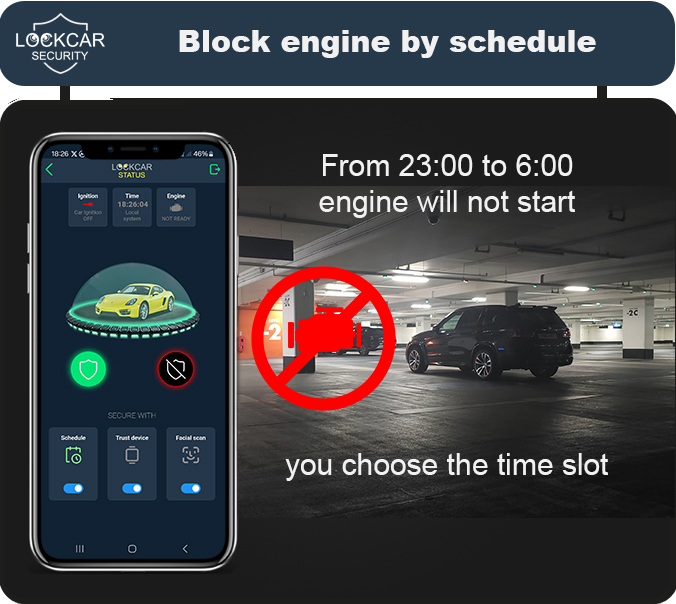

⍟ Operation according to schedule

⍟ Chip Key

⍟ Valet mode

With this immobilizer, even if thieves get their hands on your car key, they will still not be able to start the car. When this immobilizer is in the Security ON state, the car will not be able to be started in any way, security deactivation can be programmed at certain times of the day, or it can be deactivated by a key tag or either from the Lockcar application

Immobiliser

★

Mini

Size

★

Key

★

Low

Energy

★

High

Tech

★

Safeguard

Area

Immobilizer Overview

Dialog coding of control commands.
Enable/disable maintenance/valet mode.
Individual 128-bit encryption key.
Built-in LED indicator.
AntiHijack.

Specification

Control the Lockcar Immobilizer with the:

smartphone using the Lockcar app
Key tag

Add-on futures

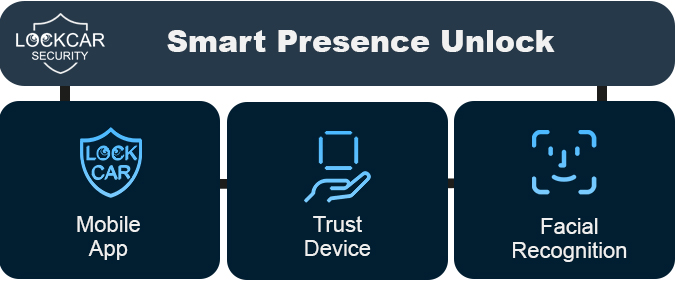

The Lockcar Immobilizer is capable to integrate immobilization whit:

tracking trust devices
SmartPhone
Bluetooth
GSM

In an era where keyless car theft is skyrocketing - especially in major cities like London we created LOCKCAR as an intelligent theft prevention system designed to stop even the most advanced digital break-ins.

LOCKCAR is the ultimate definition of an anti-theft vehicle system, it is a smart, vehicle-independent system and composed of three essential components:

MOBILE APP – Smartphone app for full remote control
MCU – Central smart unit (Management Control Unit)
IMMOBILIZER – Physical/electronic anti-theft module

LOCKCAR is always-on, powered directly from the car battery, and cannot be disabled without a secure code.

Power & Electrical

Lockcar continuously monitors your vehicle’s battery health, 24/7.
Operating Voltage: 9V – 32V DC (12V/24V vehicle systems supported)
Typical Current Draw (Standby): 10–25 mA
Add-On Backup Battery: Li-ion 12V, 50000–100000 mAh (model dependent), on specific vehicles with alocated spare space.

Power Protection:

Low voltage cutoff (configurable thresholds)
Intelligent power-saving modes
Over-voltage and reverse polarity protection

With 9 levels of smart power management, it prevents battery drain and lets you remotely control or automatically shut down the system when low voltage is detected.

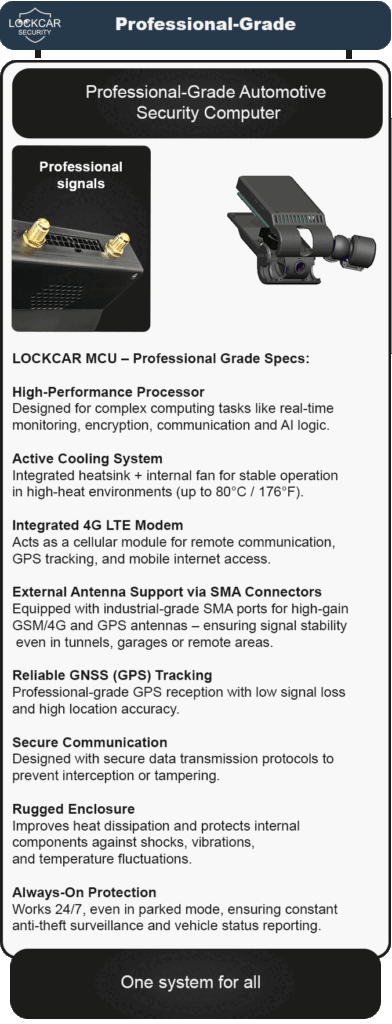

LOCKCAR MCU (Management Computer Unit) is the world’s most advanced vehicle anti-theft system.

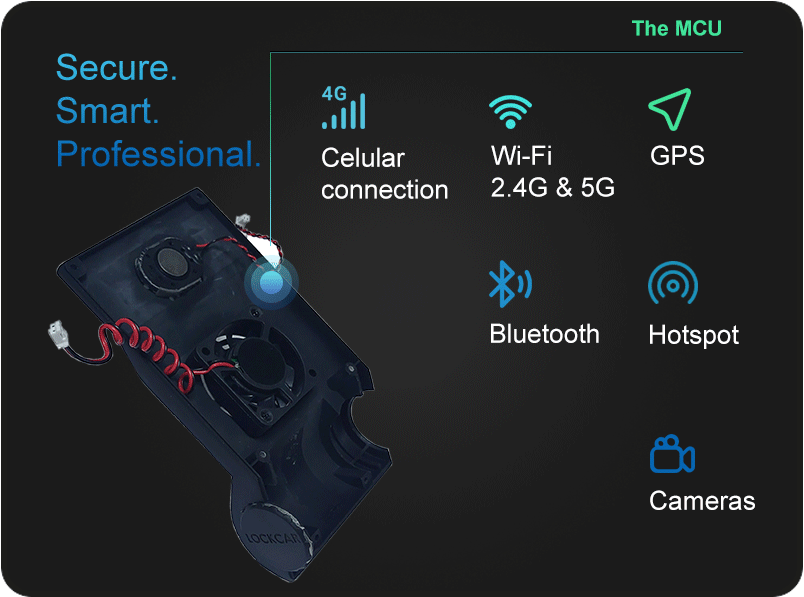

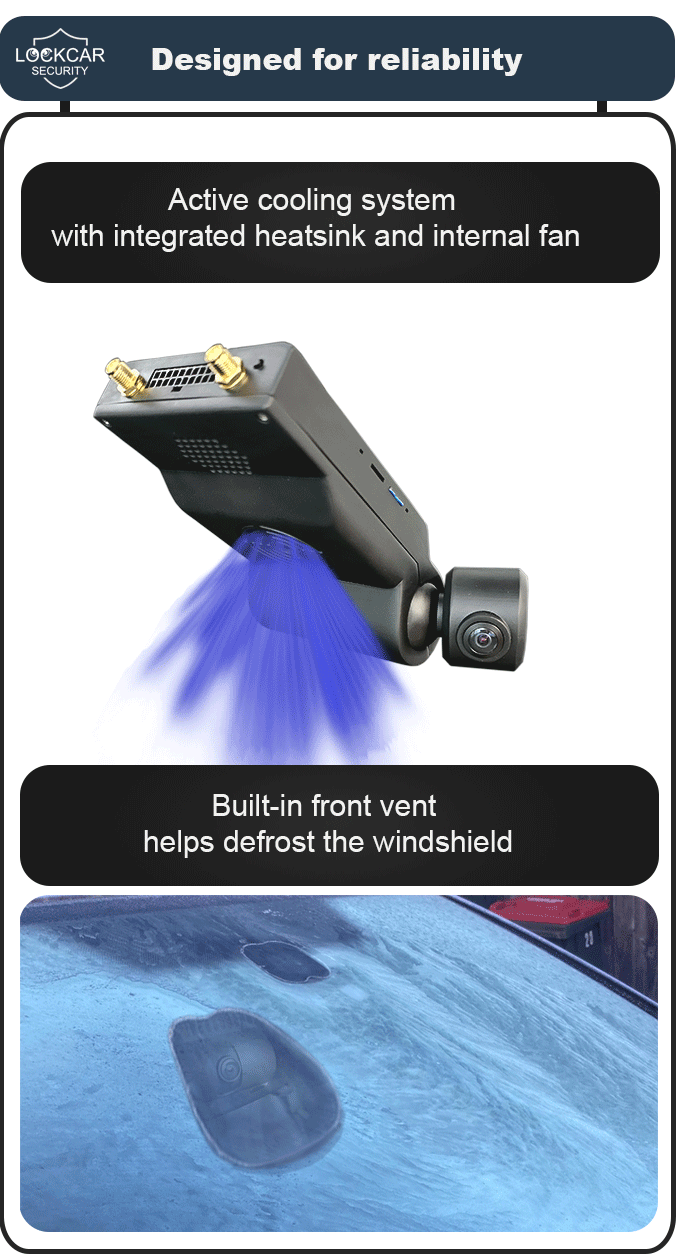

Engineered for durability and precision, it features a robust housing combined with an active aluminum thermal management system – including an internal fan and heatsink – to ensure stable performance even in extreme heat.

LOCKCAR MCU is built to operate reliably in temperatures up to 80°C (176°F).

When ambient heat exceeds this threshold, the system intelligently enters a low-power protection mode, resuming full functionality once conditions normalize.
From scorching summers to cold winters,

LOCKCAR MCU stands guard – smart, tough, and always ready.

Connectivity

Cellular Network: 4G LTE (Global Bands)
SIM Slot: Nano SIM (LTE-enabled)
WiFi: 802.11b/g/n – For hotspot or sync
GPS: High-sensitivity GNSS (GPS, GLONASS, BeiDou)

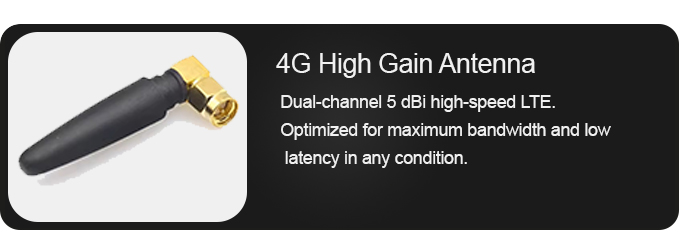

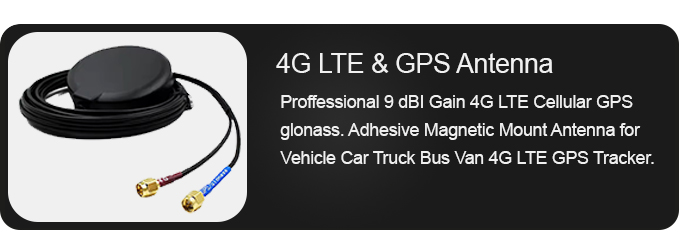

Antenna Ports:
1× SMA for 4G LTE
1× SMA for GPS

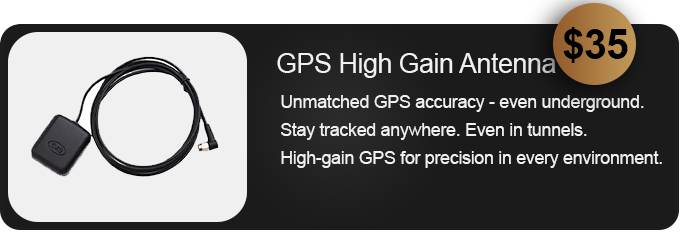

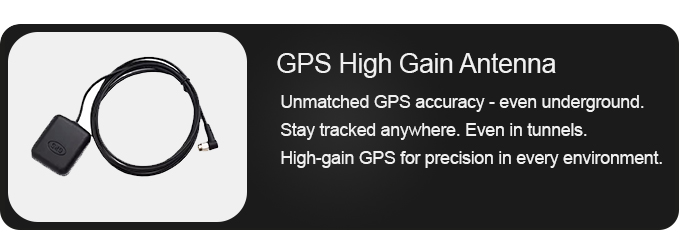

External high-gain antennas supported

Even when parked, the LOCKCAR MCU keeps your car under smart watch.

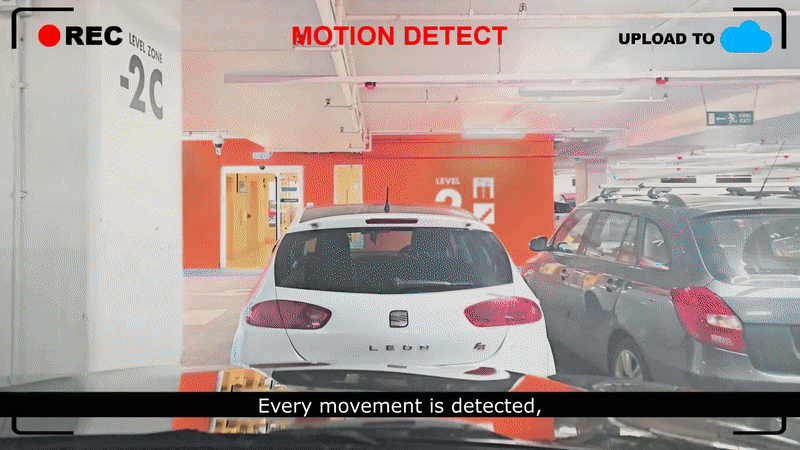

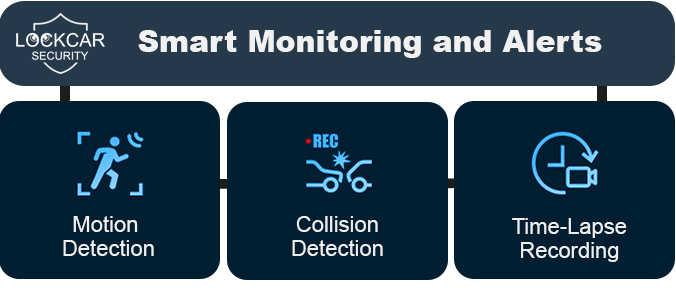

Motion Detection identifies suspicious human activity nearby, while Collision Detection captures evidence of unexpected impact, including break-ins or hit-and-runs.

If such motion or impact is detected, you’ll receive instant 4G alerts via the LOCKCAR app, and you can remotely check live streaming of all three camera views anytime to ensure your vehicle’s surroundings are secure.

Motion is detected via all the cameras: Front, Driver & Rear and saved into the SD card or optional in CLOUD.

*4G module is required.

A cellular data plan is required to enable all remote access, controls, notifications, and parking surveillance features.
